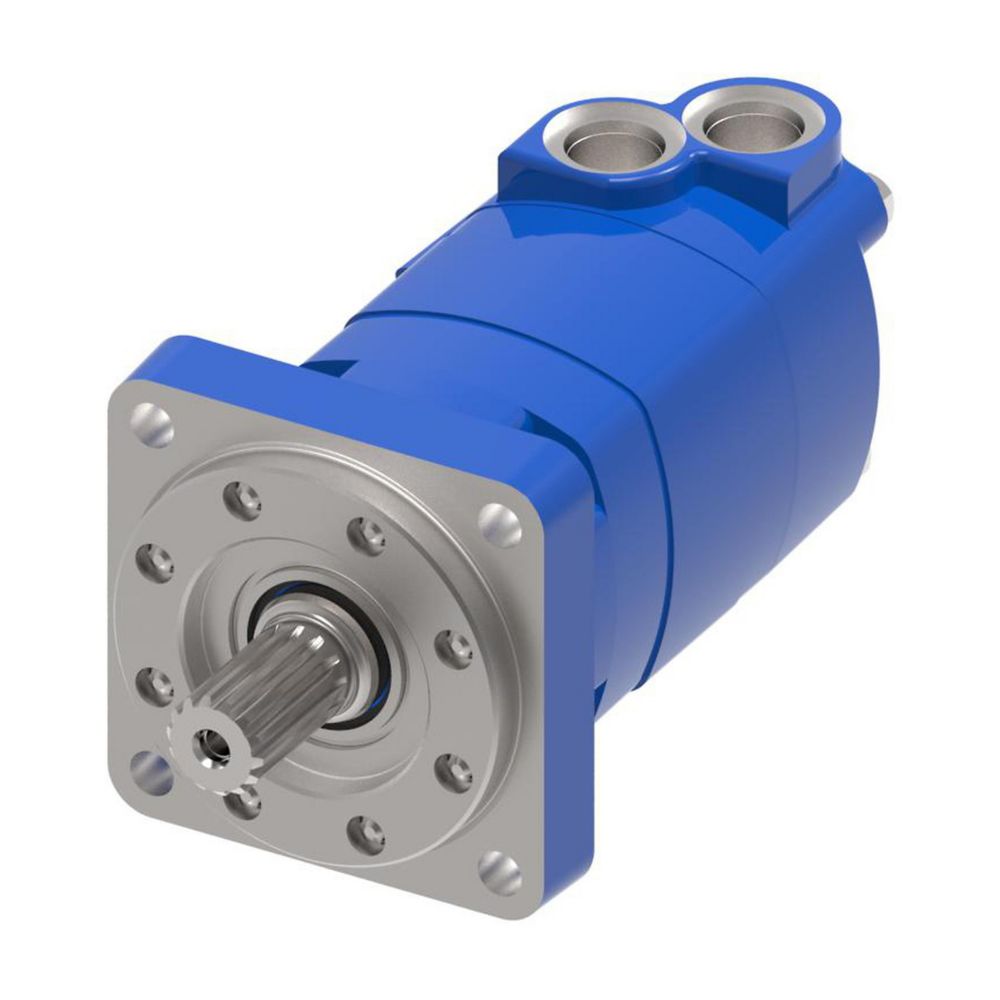

109-1052-006

Product Description :
Category :Motors
Sub-Category :Low-Speed, High-Torque Motors (LSHT) - Gerotor/Geroler
Type :Disc Valve
Brand :Char-Lynn
Part No. :Motors - 4000 Series; Standard Mount Motor
Model Code :M04190AE05AA01000000000000000F
Seal :MOTOR
Series :4000 SERIES
Cover Type :311.8 CM3/R [19.03 IN3/R]
Mounting :This feature is proprietary or unpublished. Please contact your Danfoss representative or a local distributor for assistance.
Input Port Connection :31.75 [1.250] DIA. TAPERED WITH 1.000-20UNEF-2A THREAD 7.938 [.3125] SQ. X 25.4 [1.00] STRAIGHT KEY (AVAILABLE WITH MOUNTING TYPE (E) ONLY)
SAE Rating Capacity :.875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS
Outlet Port Connection :.5625-18 UNF-2B SAE O-RING PORT WITH SHUTTLE
Shafts :NONE
Position of Outlet :STANDARD
Flow Rate :STANDARD
Pressure :NONE
Design :NONE
Shaft Rotations :NONE
Special :NO PAINT, INDIVIDUAL BOX
Other Code :CodeM
Direction Control :MOTOR
Size of Flow :4000 SERIES
Manual Operator :This feature is proprietary or unpublished. Please contact your Danfoss representative or a local distributor for assistance.
Valve Housing Material :Description31.75 [1.250] DIA. TAPERED WITH 1.000-20UNEF-2A THREAD 7.938 [.3125] SQ. X 25.4 [1.00] STRAIGHT KEY (AVAILABLE WITH MOUNTING TYPE (E) ONLY)
Port Size :.875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS
Special Features :.5625-18 UNF-2B SAE O-RING PORT WITH SHUTTLE
Note: 'Please contact us for pricing information. The price displayed as 1 Rupee is only a placeholder and does not reflect the actual cost. We apologize for any confusion caused. To inquire about the accurate price of this product, kindly get in touch with our sales and services team. They will be delighted to provide you with the current pricing details. Thank you for your understanding.'

109-1052-006
