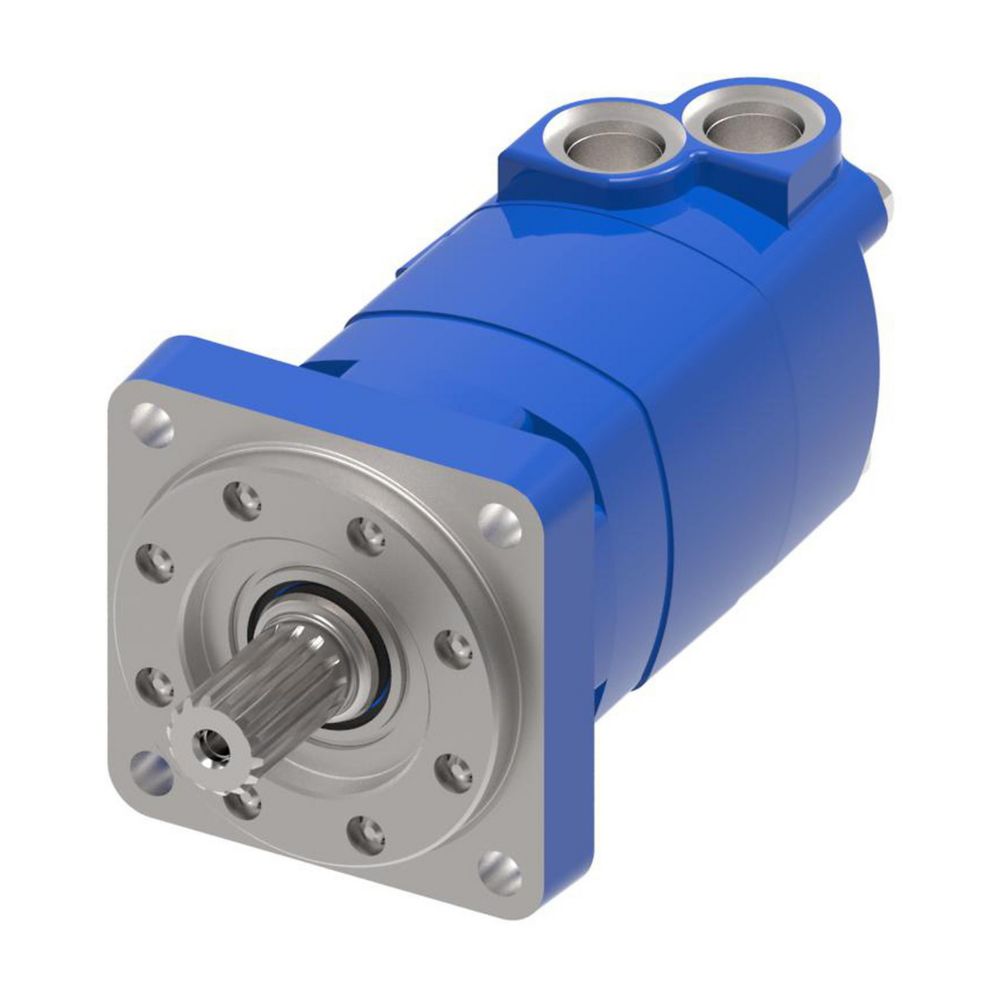

109-1117-006

Product Description :
Category :Motors
Sub-Category :Low-Speed, High-Torque Motors (LSHT) - Gerotor/Geroler
Type :Disc Valve
Brand :Char-Lynn
Part No. :Motors - 4000 Series; Standard Mount Motor
Model Code :M04125AB03AB02000000000000000F
Seal :MOTOR
Series :4000 SERIES
Cover Type :205.5 CM3/R [12.54 IN3/R]
Mounting :STANDARD, 4 BOLT; 101.60 [4.000] PILOT DIA 14.7 [.58] SLOTS ON 127.00 [5.000] DIA.BOLT CIRCLE. (SAE B)
Input Port Connection :31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 38.1 [1.50] MINIMUM FULL SPLINE LENGTH WITH .375-16UNC-2B THREAD
SAE Rating Capacity :1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS
Outlet Port Connection :.4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE
Shafts :NONE
Position of Outlet :STANDARD
Flow Rate :STANDARD
Pressure :NONE
Design :NONE
Shaft Rotations :NONE
Special :NO PAINT, INDIVIDUAL BOX
Other Code :CodeM
Direction Control :MOTOR
Size of Flow :4000 SERIES
Manual Operator :STANDARD, 4 BOLT; 101.60 [4.000] PILOT DIA 14.7 [.58] SLOTS ON 127.00 [5.000] DIA.BOLT CIRCLE. (SAE B)
Valve Housing Material :Description31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 38.1 [1.50] MINIMUM FULL SPLINE LENGTH WITH .375-16UNC-2B THREAD
Port Size :1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS
Special Features :.4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE
Note: 'Please contact us for pricing information. The price displayed as 1 Rupee is only a placeholder and does not reflect the actual cost. We apologize for any confusion caused. To inquire about the accurate price of this product, kindly get in touch with our sales and services team. They will be delighted to provide you with the current pricing details. Thank you for your understanding.'

109-1117-006
